Description

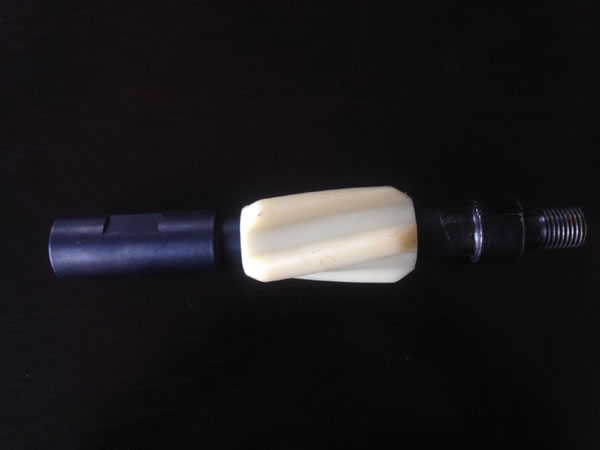

The main difference between rotating sucker rod guide and non-rotating sucker rod guide is that the polymeric piece molded on carbon or alloy steel of rotating sucker rod centralizer can rotate freely. This makes rotating rod guide more flexible when it works.
Features
As it is rotatable, rotating sucker rod guide can be used to connect the sucker rod string of progressing cavity pump.
Advantages
Despite the advantages of non-rotating sucker rod centralizer, rotating rod can be used on progressing cavity pump because the guide on the metal body is rotatable.
Parameter
Specification (in)
Outside Diameter of Guide (mm)
5/8 Rod / 2-3/8 Tubing
46
5/8 Rod / 2-7/8 Tubing
58
3/4 Rod / 2-7/8 Tubing
58
7/8 Rod / 2-7/8 Tubing
58
1 Rod / 3-1/2 Tubing
72
